Indirect, Direct Or Non Vented Safety Goggles Explained

The first and most critical eye protection decision is identifying whether chemical vapors, fumes, or irritating mists are present.

If they are, the minimum requirement is clear: a fully sealed, non-vented goggle. This decision should be made before considering comfort features, lens coatings, or even impact resistance. Vapors change the rules entirely.

Starting with vent types or comfort comparisons delays the most important safety message. The hazard must be addressed first, and vapors represent a non-negotiable exposure risk.

Chemical vapors behave differently than liquids or solid particles. They spread through air, migrate through pressure differences, and move along ventilation paths. Because of this, they do not need a direct opening to reach the eye area.

Any vent, direct or indirect, creates an entry pathway through vapor diffusion. Even covered or angled vents allow gases to pass through air channels over time.

This is why industrial safety standards treat vapor exposure separately from splash or dust hazards. When vapors are present, containment becomes more important than impact resistance or airflow.

Non-vented goggles provide that containment by eliminating airflow paths entirely.

Understanding vent design helps explain why certain goggles fail in chemical environments.

• Direct-vented goggles use open holes in the frame to maximize airflow. They are designed for impact protection only and are not suitable for liquids, vapors, or fine dust.

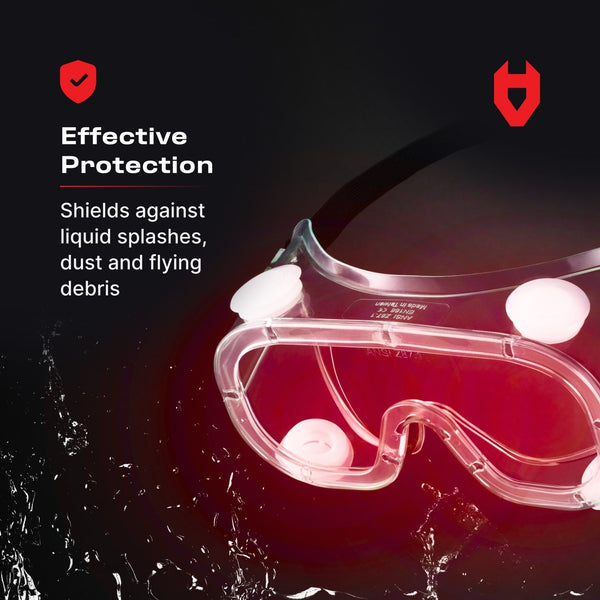

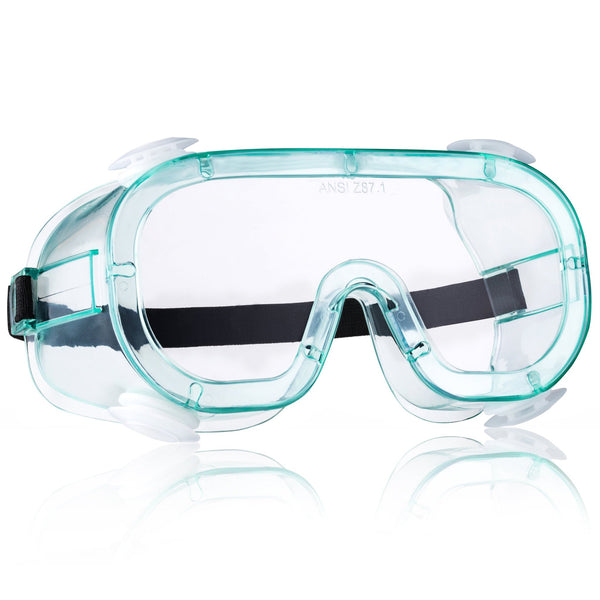

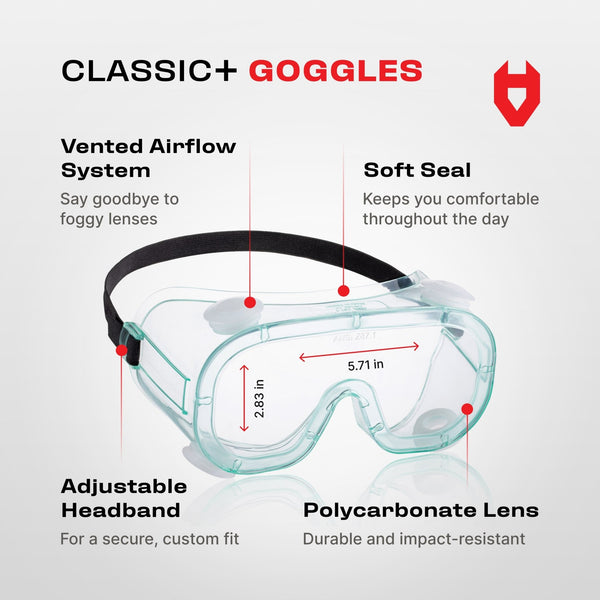

• Indirect-vented goggles use covered or angled vents that restrict straight-line entry of liquid splashes and larger dust particles while allowing limited airflow.
• Non-vented goggles have no vents and form a complete seal around the eyes.

Ventilation improves comfort and reduces fogging, but it always introduces a trade-off. Any airflow path is also a potential contaminant path.

NoCry safety goggles fall into three ventilation categories: non‑vented, indirect vented, and direct vented:

Indirect-vented goggles are commonly rated ANSI D3, which certifies protection against liquid droplets and splash. This rating is essential for many chemical handling tasks involving liquids.

However, D3 certification applies only to liquid behavior.

Once a chemical becomes a gas or vapor, the test criteria behind the D3 rating no longer apply. Vapors do not need direct impact or straight-line access. They move through air channels, including the vents that make splash goggles more comfortable.

As a result, a D3-rated goggle may perform perfectly during a liquid splash event and still fail completely in a vapor environment. This distinction is often misunderstood and is a frequent source of incorrect PPE selection.

Fogging is one of the most common reasons workers report dissatisfaction with sealed goggles. Moisture from body heat and breathing condenses on the lens when airflow is restricted.

From a safety management perspective, fogging matters because it affects behavior. Reduced visibility increases task difficulty, eye strain, and the likelihood that workers will adjust, lift, or temporarily remove their goggles.

These short exposure windows are enough to negate the protection the goggle is intended to provide. Over time, recurring fog issues also reduce trust in the PPE itself, leading to inconsistent use.

ANSI/ISEA Z87.1-2020 includes “D” markings that indicate protection against specific splash and dust hazards.

• D3 – Droplet and splash protection: Used for liquid chemical handling, labs, plating, and washdown operations.
• D4 – Large dust protection: Designed for larger particles (150 microns and above), common in woodworking, construction, and general material handling.
• D5 – Fine dust protection: Required for fine, highly penetrative dust below 150 microns, including cement, metal grinding dust, pharmaceutical powders, and crystalline silica.

D5 hazards carry a significantly higher health risk. These particles are easily inhaled and can penetrate poorly sealed eye protection, contributing to long-term respiratory and ocular disease.

Using a D4-rated goggle in a D5 environment is a compliance failure. The seal integrity has not been certified for that particle size.

The only reliable way to confirm the protection of any type of safety goggle is by checking the markings printed on the goggle frame or lens.

For example:

• Z87+ indicates high-impact protection
• Z87+D3D4D5 indicates certification for splash, large dust, and fine dust

If the specific rating required for your hazard is not printed on the eyewear, the goggle is not certified for that task. Documentation or verbal assurances do not replace physical markings.

Selecting safety goggles should follow a clear risk hierarchy, starting with chemical vapors, which require fully sealed, non-vented protection.

For other hazards, D3 protects against liquid splash, D4 against large dust particles, and D5 against fine, highly penetrative dust. Comfort features, like anti-fog coatings, support consistent use and ensure protection stays in place.

A simple check before each shift — task, hazard, marking — can prevent injuries that last far longer than the job itself.
